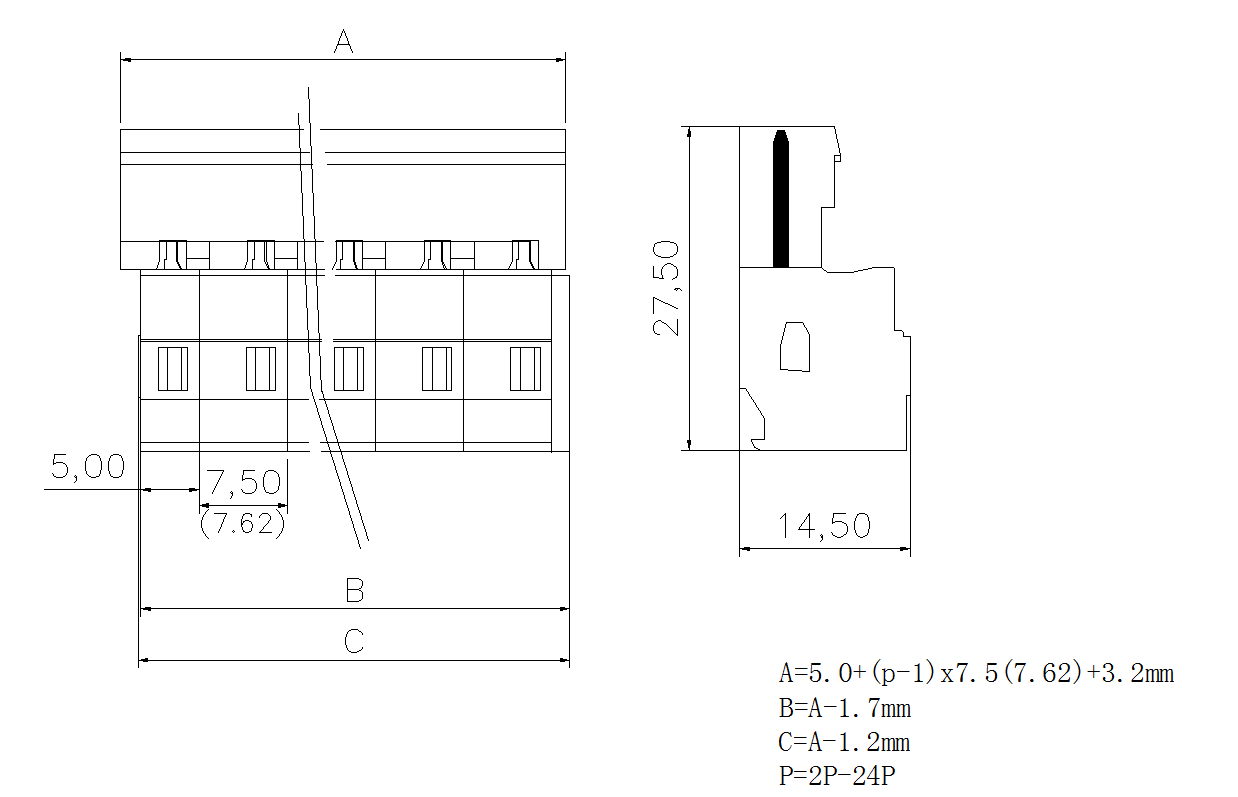

bit spacing

7.5mm/7.62mm

number of digits

2-24P

Wiring range

AWG/mm ²

24-14/0.2-2.5

Technical data

IEC

UL

Rated voltage

V

400

300

Rated current

A

12

15

Rated impulse voltage

KV

6

pollution level

3

Insulation Materials

PA66

Flammability rating

V0

Applicable ambient temperature

– 40℃~+105℃

can choose colour

7.5 pitch (grey); 7.62 pitch (orange)

Contact material

Phosphor bronze tinned

Shrapnel material

Stainless steel

Wiring

spring clip

Applicable lead

0.2-2.5 mm ² types of conductors

Stripping length

8-9mm/ 0.33in
