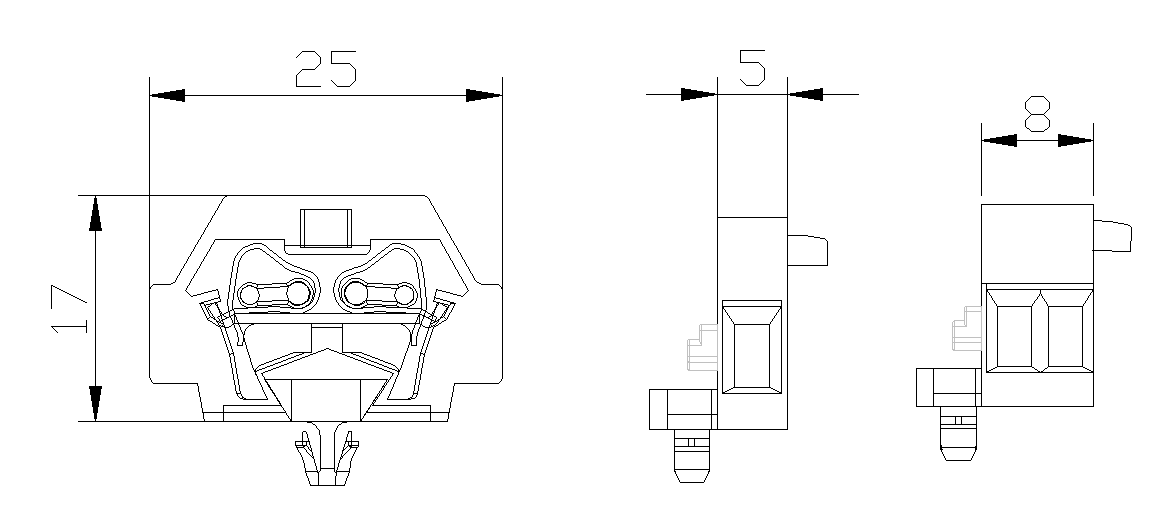

TW1-230 Series Miniature Terminal with Pin
model | TW1-230 | ||
Wiring range | AWG/mm 2 | 24-16/0.2-1.5 | |
Technical data | IEC | UL | |
Rated voltage | V | 400 | 300 |
Rated current | A | 18 | 10 |
Rated impulse voltage | KV | 6 | |
pollution level | 3 | ||
Insulation Materials | PA66 | ||
Flammability rating | V0 | ||
Applicable ambient temperature | – 40℃~+105℃ | ||
can choose colour | grey, white grey, orange, yellow, chartreuse | ||
Contact material | Phosphor bronze tinned | ||
Shrapnel material | Stainless steel | ||
Wiring | spring clip | ||
Applicable lead | 0.2-1.5 mm 2 types of conductors | ||
Stripping length | 8-9mm/ 0.33in | ||
TW1-1/TW2-1/TW3-1: end plate; without lugs; gray
TW1-4 /TW2-4/ TW3-4 : jumper bridge,made of metal parts of insulating material, 2 pins, grey
Mounting foot TW1-6; can be mounted on terminal blocks with retaining pins; can be mounted on relay modules; width 6.4 mm; grey
